BHC-9 LS3
Loading…
Engine
| Type: | Water cooled V8 |
| Power: | 327 kW (445 hp) at 5750 rpm. |
| Torque: | 574 Nm at 4750 rpm. |
| Engine block: | Aluminum, main bearings six times bolted |
| Cylinder-heads: | Aluminum (65 ccm combustion chambers) |
| Valves: | 5.08 cm inlet / 3.94 cm outlet |
| Compression: | 10.9:1 |
| Capacity: | 6.2 liters |
| Fuel Injection: | Multiport injection |
| Exhaust: | 2.5″ double pipe system with dampers |
| Transmission: |
3-speed automatic transmission with reverse gear |
| Drive: |
Cardan shaft on shortened Ford rigid axle 7,5″. |
Dimensions

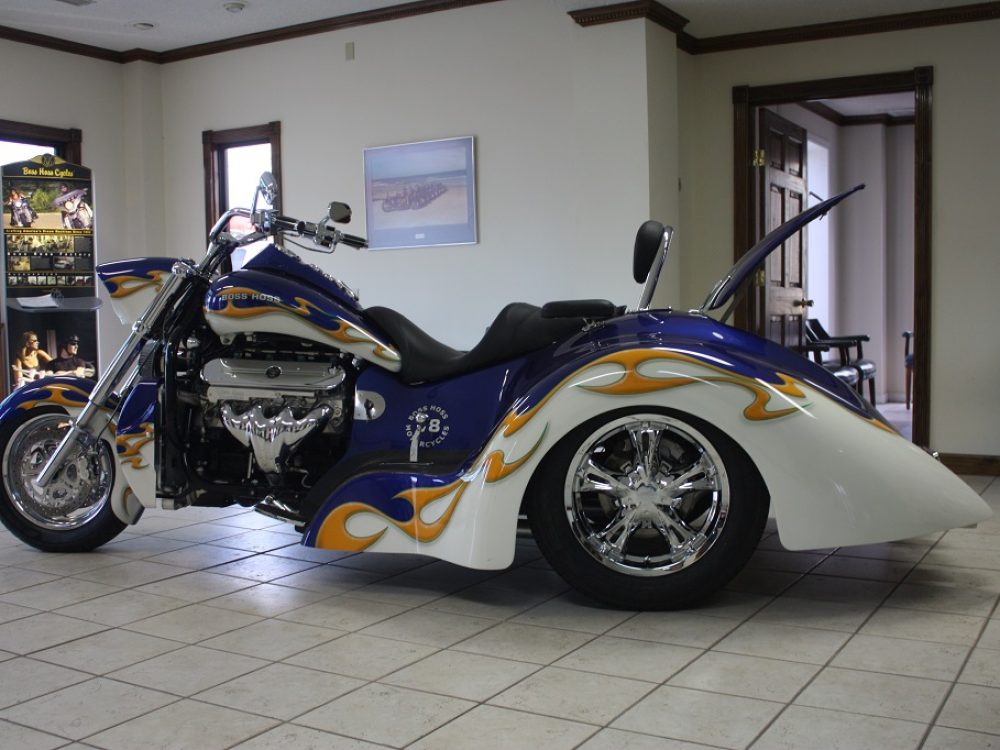

| Overall length: | ´32 Coupe 334 cm, ´57 Chevy 333 cm, Sierratruck 345 cm, Gangsta 383 cm |
| width: | 145 cm |
| Seat height: | 74 cm |
| Cranking | 33.0 degree |
| Ground clearance: | 11,5 cm |
| Frame width: | 71 cm |
| perm. total weight: | 971 kg |
| Empty weight: | 717 kg |
Tires / Rims
| Front: | MT90 B16, 3.50″ x 16.0″ |
| Rear: | 255/35 ZR 20 on 9″ x 20″ |
Chassis
| Front: | 63 mm upside-down fork, 8.9 cm travel, adjustable preload |
| Rear: | Air suspension |
Brakes
| Front: | 2 x 4 piston calipers, 32 cm brake discs (float-mounted) |
| Rear: | 2 x internally ventilated disc brakes 290 mm |
Tank
| Tank capacity | about 32 liters |
| Reserve tank: | -none- |
| Consumption | 9.5 – 11.3 liters |
Equipment
| Storage space: | -none- |
| Instruments: | Electronic speedometer, mileage counter, trip counter, on-board voltage, water temperature, oil pressure, fuel level |
| Displays: | High beam, turn signal, neutral (transmission) |
| Guarantee: | 12 months, no mileage limit |
